BODY SHOP

PRODUCTS

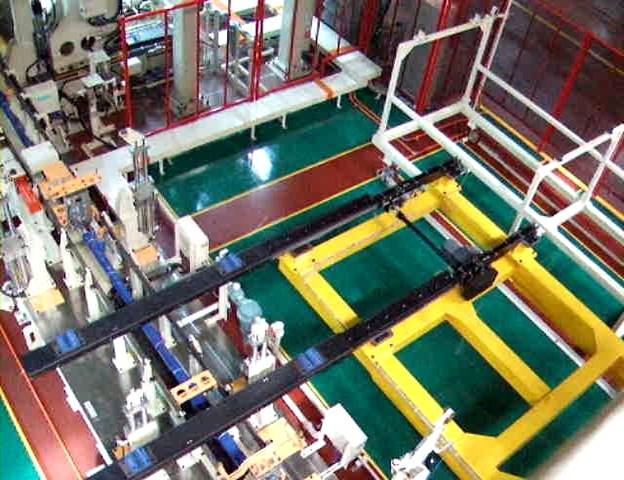

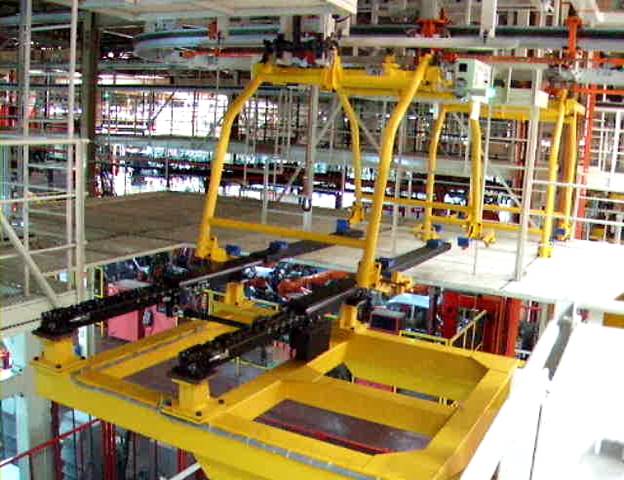

BODY SHOP ( UNDER BODY )

Overhead Electric Monorail System PROTON Body Shop Under Body

* General Specification

1. Machine Cycle Time : Max65sec

2.Conveyor Type : Electric Monorail System Front and Rear Floor transfer Line is composed two(2) line, and two Telescopic Lift, Drop Lift and two Repair Line

3. Carrier
2-1. EMS Carrier Arm Opening Type
2-2. EMS Carrier is composed one(1) Drive Trolley, one(1) Middle Trolley and two(2) Idle Trolley
2-3. No. of EMS Carrier :
Front Floor Carrier : 5sets.
RR Floor Carrier : 7sets
Hypoid Geared Motor of EMS Drive Unit : 0.2kw, 4P,220V,50HZ
2-4. Speed of EMS Carrier : Max. 60m/min by Inverter Controller

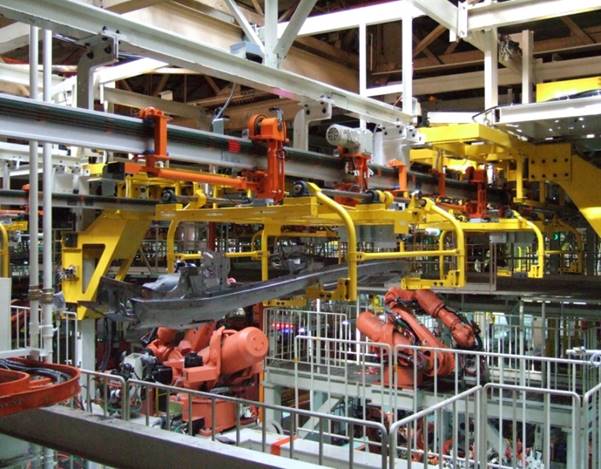

BODY SHOP ( SIDE PANEL )

* Overhead Electric Monorail System PROTON Body Shop Side Panel

* General Specification

1. Machine Cycle Time : Max65sec

2.Conveyor Type : Electric Monorail System
RH and LH Side Structure transfer Line is composed two(2) line, and two(2) Telescopic Lift, two(2) Drop Lift and a Repair Line

3. Carrier
3-1. EMS Carrier Arm Opening Type
3-2. EMS Carrier is composed one(1) Drive Trolley, one(1) Middle Trolley and two(2) Idle Trolley
3-3. No. of EMS Carrier : RH Side Carrier : 6sets. LH Side Carrier : 6sets.

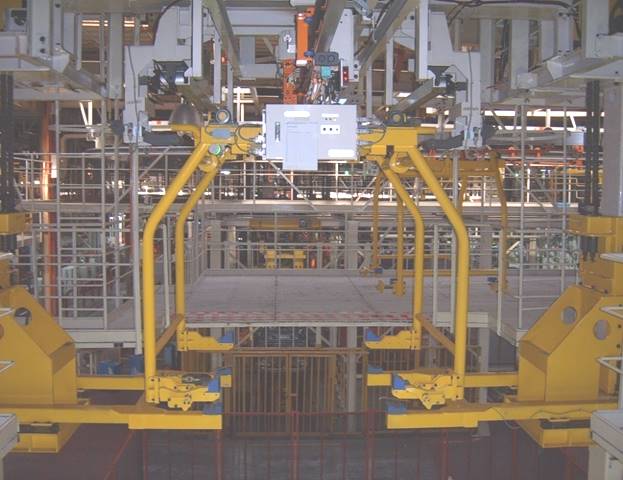

BODY SHOP ( ROOF )

* PROTON Body Shop (Bus Bar) Roof

* General Specification

1. Machine Cycle Time : Max65sec

2.Conveyor Type : Electric Monorail System
Roof transfer Line is composed one(1) line and one(1) Repair Line

3. Carrier
3-1. EMS Carrier with Lift Type
3-2. EMS Carrier is composed one(1) Drive Trolley, two(2) Middle Trolley and two(2) Idle Trolley
3-3. No. of EMS Carrier : 4sets..
Hypoid Geared Motor of EMS Drive Unit : 1.5kw, 4P,220V,50HZ

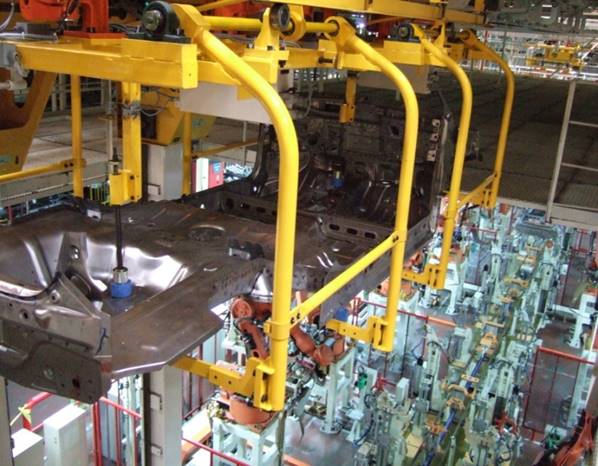

BODY SHOP ( MAIN BODY )

* PROTON Body Shop Main Body

* Overhead Electric Monorail System PROTON Body Shop (Bus Bar)

* General Specification

1. Machine Cycle Time : Max65sec

2.Conveyor Type : Electric Monorail System
Main body transfer Line is composed one(1) line and one(1) Repair Line

3. Carrier
3-1. EMS Carrier Arm Opening Type
3-2. EMS Carrier is composed one
(1) Drive Trolley, two
(2) Middle Trolley and two(2) Idle Trolley
3-3. No. of EMS Carrier : 15sets..
Hypoid Geared Motor of EMS Drive Unit : 1.5kw, 4P,220V,50HZ

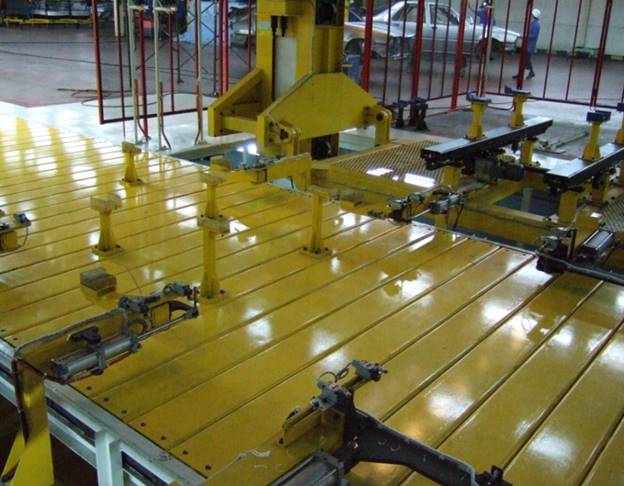

BODY SHOP ( METAL FINISH )

* Wide single slat conveyor PROTON Body Shop

* General Specification

1. Machine Cycle Time : Max65sec

2.Conveyor Type : Conveyor Type : Slat Conveyor
Fitting And Finishing Line is composed a Main single Slat Conveyor

3. Detail of Equipment
3-1. Work Station Pitch : 5000mm
3-2. No. of Work Station : 19
3-3. Slat Plate
Checked Plate 6t, 3000mm(W) X 245mm(L)
Fixture of Body Setting : 39set
